for Telecom Railway Metro Power Utilities New Eltek 6kVA AC + 12.8-21kW DC Rectiverter Outdoor system

Name: for Telecom Railway Metro Power Utilities New Eltek 6kVA AC 12821kW DC Rectiverter Outdoor system
Brand: Eltek
Price: 1 USD

China for Telecom Railway Metro Power Utilities New Eltek 6kVA AC + 12.8-21kW DC Rectiverter Outdoor system wholesale

Network : SDK

Customized support : Software reengineering, OEM ODM Support

Place of Origin : Guangdong, China

Brand Name : Eltek

Model Number : Rectiverter Outdoor system 6kVA AC + 12.8-21kW DC

Type : DC/AC Inverters

Output Type : Single

Output Current : 437ADC

Output Frequency : 45-66hz

Size : 700 x 1800 x 832mm

Weight : 250kg (551lbs)

Certificate : CE

Model : Rectiverter Outdoor system 6kVA AC + 12.8-21kW DC

Warranty : 12 months

Input Current (maximum) : 128ADC

Max input Voltage : 475VAC / 58VDC

Max Output Voltage : 240VAC / 58VDC

Output Current (maximum) : 437ADC

Max DC Output Power : 21kW

Ingress Protection (IP) : IP55

Operating temperature : -40 - 55 °C

Packaging Details : Cartons or Wooden Frame

Port : shenzhen

Supply Ability : 1000 Set/Sets per Month

Price : $1,500.00/sets 1-9 sets

Contact Now

Product Description

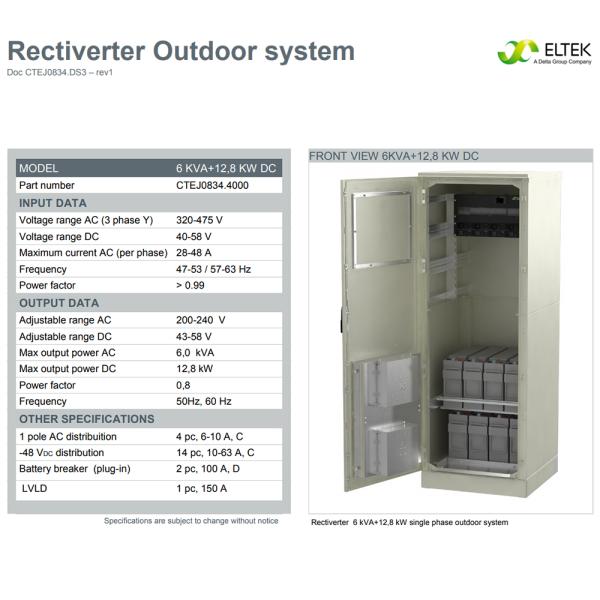

Rectiverter Outdoor system 6kVA AC + 12,8-21kW DC

The Rectiverter outdoor system combines both AC and DC feed into one common unit. Simultaneously it provides AC backup power for 230 Vac loads, and 48 Vdc power for DC loads and battery charging.

With our Type 3 cabinet platform it’s designed for a protection class of IP55. The total DC output can be configured up to 21kW DC
load where the limitation for AC load is set to max 6kVA.

for Telecom Railway Metro Power Utilities New Eltek 6kVA AC + 12.8-21kW DC Rectiverter Outdoor system

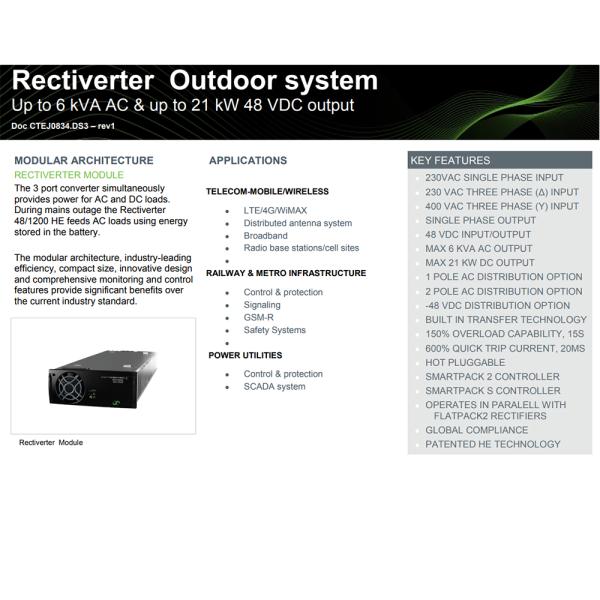

Key features:

* 230 Vac single phase input
* 400 Vac three phase input
* 48 Vdc input/output
* Single phase output
* Max 6kVA AC output
* Max 21kW DC output
* 1 pole AC distribution option
* 2 pole AC distribution option
* -48 Vdc distribution option
* Built in transfer technology
* 150% overload capability, 15s
* 600% quick trip current, 20ms
* Hot pluggable
* Smartpack2 controller
* Smartpack S controller

Application

Specification

Network	SDK
Customized support	Software reengineering
Place of Origin	Guangdong, China
Brand Name	Eltek
Model Number	Rectiverter Indoor system 6kVA AC + 12,8-24kW DC
Type	DC/AC Inverters
Output Type	Single
Output Current	437ADC
Output Frequency	45-66hz
Size	700 x 1800 x 832mm
Weight	250kg (551lbs)
Certificate	CE
Model	Rectiverter Outdoor system 6kVA AC + 12.8-21kW DC
Warranty	12 months
Customized support	OEM ODM Support
Input Current (maximum)	128ADC
Max input Voltage	475VAC / 58VDC
Max Output Voltage	240VAC / 58VDC
Output Current (maximum)	437ADC
Max DC Output Power	21kW
Ingress Protection (IP)	IP55
Operating temperature	-40 - 55 °C

OEM & ODM Service

Customer Feedback

Company Profile

Shenzhen Xingda Shidai Technology Co.LTD. founded in 2021, is an enterprise focusing on the research development and sales of communication products and data center peripheral products. The headquarters is set up in Fang shan,Beijing,and has cooperative organizations throughout the country.

The company mainly engages in network energy equipment, including: VERTIV(formerly EMERSON), HUAWEI, ELTEK, ZTE, DELTA, DZY, VAPEL and other maior manufacturers' communication power supply system, sprecision head cabinets, power supply distribution cabinets,Yixiu cabinets customization and sales; UPS,precision air conditioning of VERTIVHUAWEI,SANTAK and other brands LEOCH Panasonic, SACRED SUN, YUASA and other brands of batteries; and other supporting products in the data room.

We promise that all electrical properties of all products willundergo rigorous testing and aging testing before shipmentplus load testing to ensure the quality of the products and provide quality after-sales services.We can always provide quality assurance during the warranty period.Provide spare parts,no need to wait for the maintenance period,saving customers time and costs.

We provide OEM / ODM services according to customers' specific needs.

Our Advantages

Packing & Delivery

FAQ

1. Who are we?
We are based in Guangdong, China, founded in 2021,sell to Southeast Asia(25.00%),Africa(13.00%),Mid East(10.00%),Southern Europe(5.00%),South Asia(5.00%),Central America(5.00%),Western Europe(5.00%),Eastern Asia(5.00%),Eastern Europe(5.00%),Oceania(5.00%),South America(5.00%),North America(5.00%),Domestic Market(4.00%),Northern Europe(3.00%). There are total about 11-50 people in our office.

2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment.

3.What can you purchase from us?

Telecommunication cabinet, Embedded Power System, huawei, ZTE OLT, Rectifier module, Monitoring module, Indoor Network Cabinet, UPS, Power Supply System, etc.

4. Why should you buy from us not from other suppliers?
We are pecialized in distributing HUAWEI, EMERSON, ELTEK, DELTA, FLATPACK, ETC with original package and teachical service to provide competive Pricing and fast delivery.

5. What services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,FCA,DDP,DDU,Express Delivery；
Accepted Payment Currency:USD,EUR,CAD,HKD,GBP,CNY;
Accepted Payment Type: T/T,L/C,PayPal,Western Union,Cash;
Language Spoken:English,Chinese
